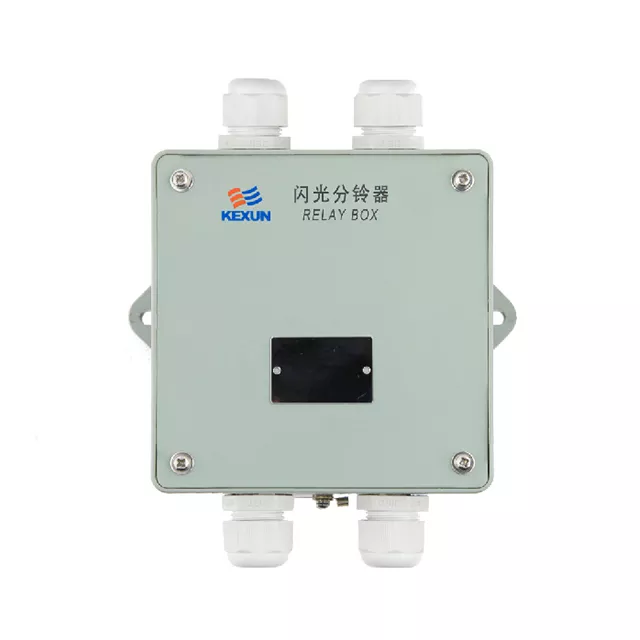

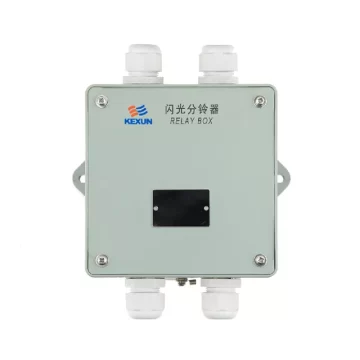

KL-1G/2G Relay box

Function
The relay box is used for an auto telephone and a batteryless telephone.
With two sets of active output， with one set of passive contact output， the Contact output normally closes, or rhythm is optional.

Power supply:
KL-1G DC24V
KL-2G AC220V±10%
Color: green gray（RAL 6034）
IP class: IP44
Weight: 0.64/1.0Kg
Active output capacity:
KL-1G DC24V/1A
KL-2G AC220V/1A
Passive contact load (resistance): 8A/250VAC
Passive contact maximum switchover voltage: 440VAC/125VDC
Stuffing box cable entrance hole size: 4-Φ12mm
