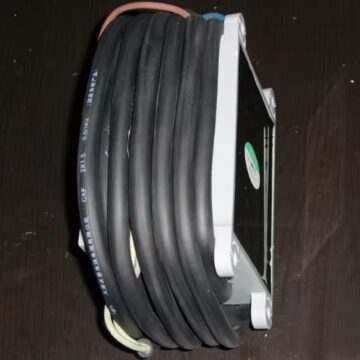

Marine Lifeboat Battery Charger CY1-12-5 12V

The battery charger conforms to general rules for electrical devices on the boat or ship. It is specially used for the automatic compensating charge of the battery used on the boat or ship.

Input Voltage: AC42V.

Frequency:50HZ/60HZ.

Output Voltage: DC14.5V

Output Current: DC5A

Weight:3Kg.

Protection Class: IP56

It makes full-wave rectification to the AC power source(42V) generated by the generator on the boat. Then charge the battery. The charger current is stabilized at 5A by the current inspection loop, and the voltage is controlled to be 14.5V “When the battery is fully charged. This unit can be protected against the short-circuit and reverse polarity.

Battery-less electricity, plug-in charger to 5 a, the green light is
lit, when
the voltage of the battery charger and 14.5 V, the charger automatically
transferred to the floating charge, the yellow indicator. When the load
power,
charger automatically turns to normal, the above cycle.3 work
instructions:

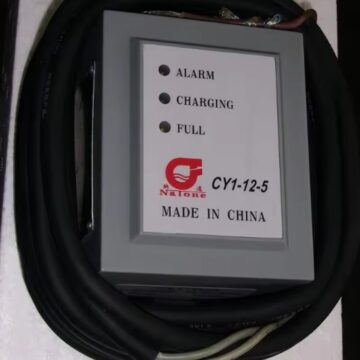

Red light: alarm indication, the battery reverse connect or open
circuit
Greenlight: charging indicator, the battery;
Yellow lights: full instructions, batteries
Four, connection order:
The output line red lines connect the battery anode, LAN lines connect
battery
cathode.
The input line AC42V input power.
