PC BALL VALVE

PC BALL VALVE

Specification:
Application standards
1. Design and manufacture conform to BS5351
2. Connection ends conform to: ANSI B16.11; JB/T1751
1)Screw ends dimension conform to ANSI B16.11; JB/T1751
2)Screw ends dimension conform to ANSI B 1.20.1; JB/T7306
3)Test and inspection conform to ANSI B1.20.1; JB/T9092
3.Test and inspection conform to:API598; GB/T13927; JB/T9092

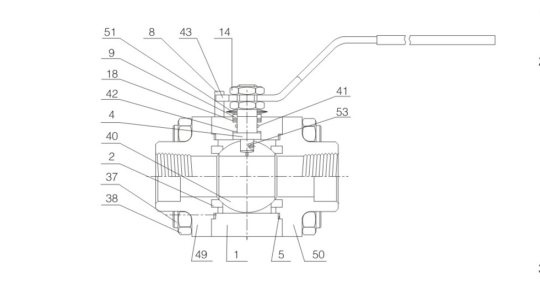

4. Structure features: Bolted bonnet: three-piece:

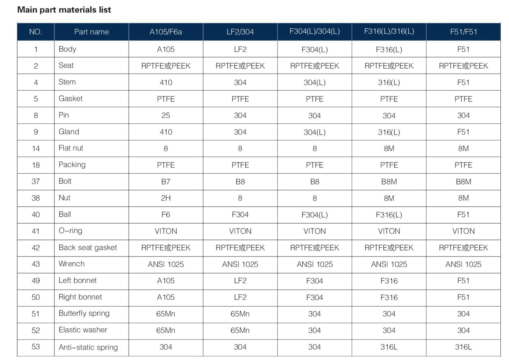

5. Materials conform to ANSI/ASTM
6.Main materials: A105; LF2; F5; F11; F22; 304(L); 316(L); F347; F321; F51; Monel; 20alloy
