PUMP and SPARE PARTS

GEAR PUMP

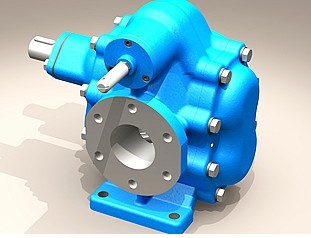

1.KCB SERIES GEAR PUMP

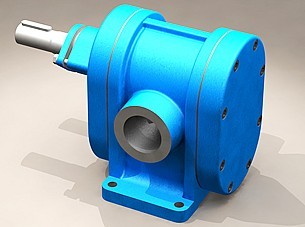

2.2CY SERIES GEAR PUMP

3.YCB SERIES GEAR PUMP

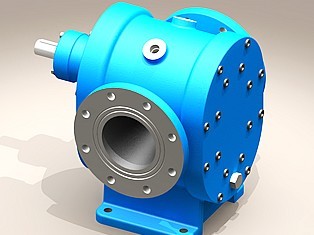

4.YCB-G MODEL HEAT INSULATING GEAR PUMP

5.LB TYPE GEAR PUMP FOR PEFRIGERATOR

Application
It is used to transfer N32 or N46 refrigerated lubricating and other lubricant oil from ammonia or freon machines. Then, the suited temperature is 10℃-80℃.
Model Explanations

6.LYB SERIES CIRCULAR GEAR PUMP

Application
● Type： Vertical Installed Pump For Ship
● Characteristic： It has characteristics of steady operating, low noise, long life, and high efficiency.
● Temperature： The max. environment temperature is 50℃，the max. use environment temperature is 80℃.
● Axle Seal： This series of pumps adopts mechanical sealing.It also adopts then filling seal according to the requirement of the customer.
Model Explanations

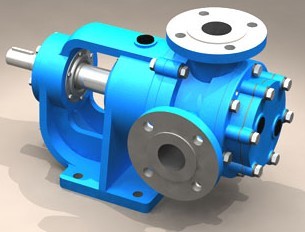

7. NYP SERIES INTERNAL GEAR PUMP

6)

8.3RP SERIES ROTARY LOBE PUMP

BRIEF INTRODUCTION
1）Feature
It belongs to a positive displacement pump and has the advantages of outstanding self-priming, high efficiency, and long life.It applies to delivering suspension liquid with soft solid particles, corrosive medium, and suspension liquid.The delivered medium temperature range from-30℃to+180℃and viscosity range from 30cSt to 1.0×105cSt.The parts of contact with the medium are adopted in stainless steel.
The rotating speed can be adjusted according to the delivered medium’s physical property.
2）Application
It is used for foodstuff, drink, medicine, daily chemical, petroleum, chemical industry, etc.
MODEL EXPLANATION

Screw pump

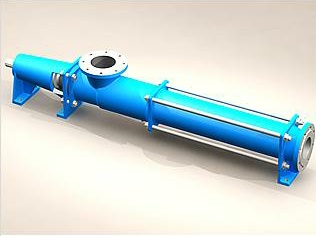

1.G SERIES MONO SCREW PUMP

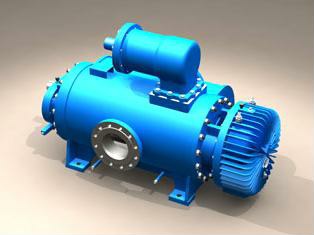

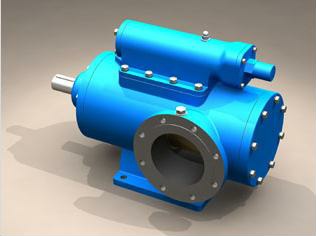

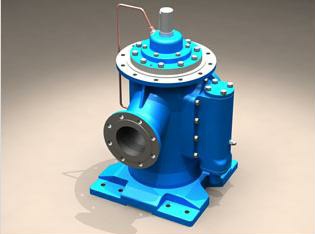

4.VERTICAL THREE SCREW PUMP Features characteristic：It has characteristics of steady operating,low nose,long life and high efficiency temperature：The max. encironment temperature is 50℃，The max. use temperature is80℃。 axle seal：This series of pump adopt mechanical sealing,It also adopts the filling seal according to the requirement of customer. ModelExplanation 3GCL：Vertical Marine Three Screws Pump 70：Specifications adn Code 2/1.0：Rated Pressure MPa According to the application modes three screw pump is divided into five series Series Main application Performancescope Capacity m3/h Pre MPa 3G Lub oil visc3-20oE;temp≤80℃ 0.6-570 2.5 3GR Heavy feul lil visc3-50oE;temp≤120℃ 0.6-570 2.5

Centrifugal Pump

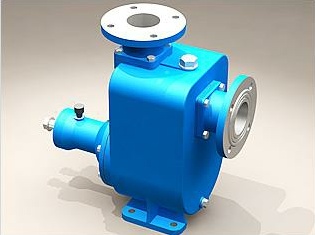

1.CYZ SERIES SELF-PRIMING ENTRIFUGAL OIL PUMP

Application
Type CYZ pump are used to deliver gas, kerosene diesel oil, etc. and the medium of tomperature with -20℃～ 80℃ .it is akind of load and unload oil pump in boat.And it is fitted in oil bunker,franker and of can be used to deliven seawafer fleash wcofer.
Features
This pump belongs to self-absorption centifugal oil pump, it’s features are simple construction, easy operation .well moving convenient repairing high displace ment high efficiency wide application slope etc.
Contruction
The pump is composed of suction room store liquid room vortex room,liquid returning hole,gas adn liquid dividing roon etc. The pumps adopt the single row radial bal l bearings , and have the cooling room in the bottom of the bearing stand , and a seal ring is used between the high press and low press area in the pump. They adopt mechanical seals on shaft end.

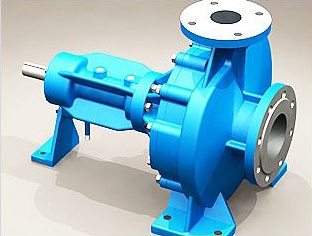

2.RY SERIES AIR-COOLED HOT OIL PUMP

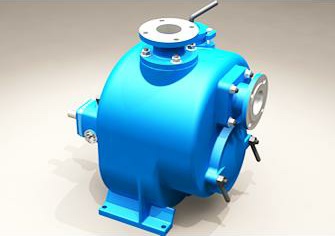

3.WZW SERIES SELF-PRIMING POLLUTED WATER PUMP

Features
This kind of pump’a self – priming ability is outstanding.It needn’t install bottom valce.It can discharge dirt which solid soft particles is sixty percent of pump’s port and fivre length can be five times as long as pump’a port.
Application
The pump widely applies to delicering polluted water,fibre,solid pareicles,slag,paperpulp and so on.
Structure
The pump is designed with store water room,horizontal bearing box.There’re two kinds of axle-seals , mechanical seal and skeleton seal.There’s an affusion entrance at the top of pump in order to poerate conveniently.

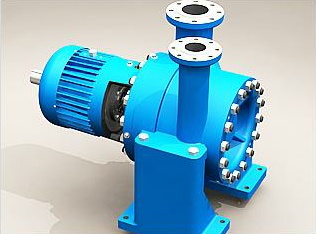

4.AY TYPE SINGLE TOW–STAGE CENTRIFUGAL LUBRO-PUMP

Brief Introduction
AY-type lubro-pump series,which is reformed and redesigned on the base of oringinal Y type lubro-pump series.In order to meet the construction of the modernization an adapt to the requirement of replacing the old with the new one soon which is focused on the szcing the neergy, so we develop this new product,it has the follwing characteristics：
1、The original bearing body parts 35，50，60 are replaced by bearing body 45，55，70,in this way its reliability can be increased.
2、The hydraulic excess flow part adopt the hydrauli model of the high efficiency energy-saving pump,in average,the efficiency is 5—8%higher than the old Y type lubro-pump
3、In order to keep inheriting,the structure pattern,installing size ,
4、The lubro-pump patts hawe the strong all-purpose abllity,its general-standard parts can be commonly used by several series.
5、The affinage of its selecting materials way and the principals part is mainly made of Ⅱ、Ⅲ kind materizl , the materials of some parts such as bearing body is up to two kinds , that is casting steel and casting iron,in this way,it makes very adcantageous for being used in the coldarea,being wsed outdoor,using forshio-making .
6、According to the dinggerent sercice temperature,selecting hearing has three types,that is air cooling,air fan cooling,water cooling, Among them,air fan cooling is especially used for the atea where the water resource is lzck or the quality of water is worse.
AY-type single ,double lubro-pump series performance
Scope:Flow capacity: Q=2.5～600m3/h lift : H=30～330m Temperature: T=-45℃～+420℃
AY-type lubro-pump can be used in different field such as petroleum refining,petrochemical,chemical industry,the other field which transport the petroleum,liquid gas and the other medium which doesn’t contain the particulate solids.
Type illustration
50AYⅡ60×2B，250AYS Ⅲ 150C
50，250–the diameter of suction port（mm）
A–The first time alteration 　Y–centrifugal lubro-pump 　S–the first impeller is double suction.
Ⅱ、Ⅲ–the code name of the excess flow part/s material ：ⅠKind is HT250，ⅡKind is ZG230-450，ⅢKind is ZGCr13Ni。
60，150-single lift（m） 　2–class
B，C–inpeller cutting times , the order will be showed as A、B……
Structure characteristics
AY-type lubro-pump can be divided into six kinds,that is single- stage single suction and two-stage single suction cantilever,single stage double suction cantilever ,single stage double suction and two stage double suction dual bearing type ,two stage single suceion dula bearing type .
The impeller is cat integrally,an after static balancing,the axial force of the pump is mainly depend on the balanced cavity of the impeller to keep its balancing. there are radial ball bearing and a set thrust ball beafing,which is installed back to back on the bearing body . is bearing adopt iol slinger to lubricate it . fins are cadt on the durface of the bearing body , it can be air -cooled ,we also can choose fan-cooling （T=120℃-260℃）and water-cooling（T=260℃-420℃）。
In order to easily dismounting the parts such as impeller,shatr , bearing ro gaand seal ,meanwhile we don’t need to dismantle the suction line or dis charge lin while the pump is on the ocerhaul,we always adopt metallic flexible laminated membrane couplings.
The pump line system
1、Accdrding to the temperature and the demand of application we use cooling-water to cool the shaft seal cacity, beraing or pump mounting the water amount fou per pipe is 0.3-0.7m3/h,its pressure 0.2-0.3MPa。
2、Sealing flush is changing according to the different transporting medium and its temperature rpessure or the other working condition,the seal liquid amout for per pump is as following table ,both inter -supply and outer -supply is suitable for that.

　 The pressure of the seal liquid is ususlly higher than the pressure of the sealing cacity 0.07-0.1MPa，if the transporting medium is easily vaporizing,the het pressure should be higher than the caporizing pressure 0.175-0.2MPa.
3、Steam line is equipped in case the transporting medium is easily precipitation crystal;its pressure shoulr be 0.1MPa less or more.
The material list of the excess flow patrs
According to the different service condition,the mai parts of the pump can be dicided int three dinds , the details is as following chart

● Potational Direction
Watching pump from prime mover,rotational direction is anticlockwise.

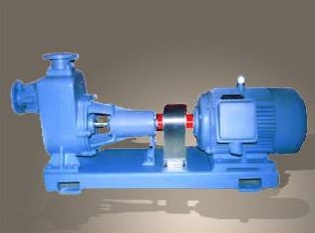

5.CWZ SERIES HORIZONTAL CENTRIFUGAL SELF-PRIMING MAR

Brief introduction
CWZ series horizontal centrifugal self-priming marine pumps are well fixed and beautifully shaped and have highself-priming fuction.They can also be installed and used easily,which are best choices for the ships to drain water.
CWZ series horizontal centrifugal self-priming marine pumps are well used in all kinds of ships and warships for ballast,fire control,life water supply on the bilge.They can be used to pump sea water and fresh water, but the mediums’temperature should be lower than 80℃.
Instruction for the model code
Integer number of contrast revolution divided by ten
Horizontal
For ships
Diameter of inlet mm

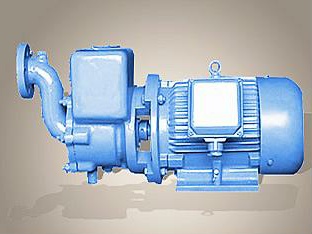

6.CWX SERIES SELF-PRIMING GENTRIFUGAL VORTEX PUMPS

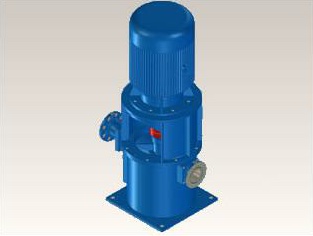

7.CLZ SERIES VERTICAL CENTRIFUGAL SELF-PRIMING MARIN

Brief introduction
CLZ series vertical centrifugal self-priming marine pumps are of small volumn,low weight and high function of self-priming.They’re easily fixed and used.
The type of pump is suitable for ballast,fire control,cooling and so on the bilge in all kinds of ships and warships .But the mediums’temperature should be lower than 80℃.
Instruction for the model code　

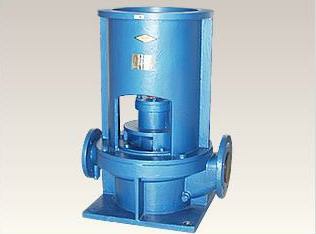

8.CLH SERIES VERTICAL CENTRIFUGAL MARINE PUMPS

Brief introduction
CLH series vertical centrifugal marine pump os applied in all kinds of shipping and warship for ballast pump ,bilge pump, coolant pump,drainage pump and fire pump.It also used as neccessary feed pump for seawater desalting device and various tank equipument,and the booster pump for petroleum and and chemical industry pipelines,cold and hto water circulating system and high-rise building living water supply system.
Instruction for the model code　
