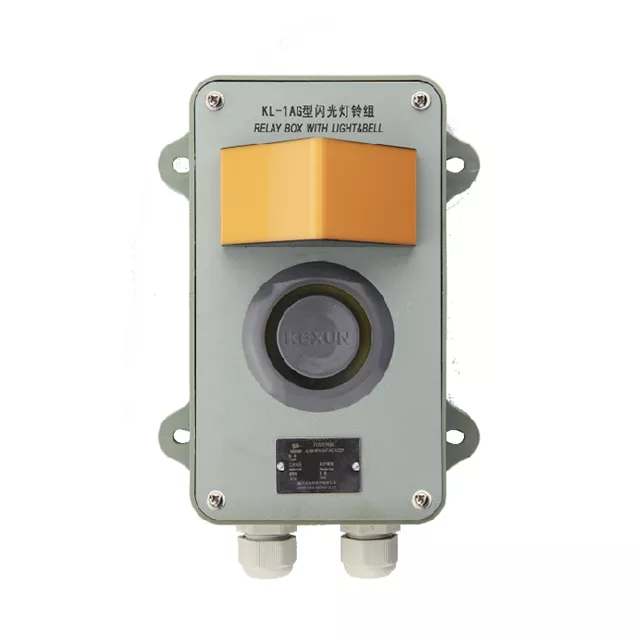

KL-1AG2AG Alarm with light and buzzer

Function
Relay box with light &bell is used for an auto telephone and a batteryless telephone.
With a call indicator light and buzzer.
With one set of passive contact output.

Power supply:
KL-1AG DC24V
KL-2AG AC220V±10%
Color: green gray（RAL 6034）
IP class: IP44
Weight: 0.92/1.3Kg
Sound pressure level: 90dB～105dB
Passive contact load (resistance): 2A/30VDC 1A/125VAC
Passive contact maximum switchover voltage: 240VAC/120VDC
Stuffing box cable entrance hole size: 2-Φ12mm
Power: 8W
